Product Literature of Mechanical Pipette – Multi-Channel

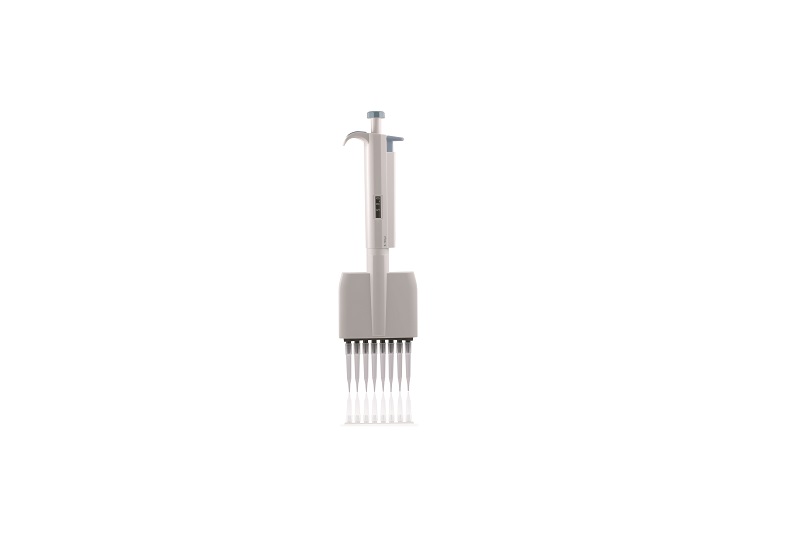

Mechanical Pipette - Multi-Channel
- 8 pipettes are available for standard 96-well plate
- Dispensing head rotates for optimum pipetting convenience
- Individual piston and tip cone assemblies allow easy repair and maintenance
- Compound material tip cone design allows visual seal verification
- Can be used with universal style pipette tips
| Mechanical Pipette – Multi-Channel | |
| Topette8-10 | Volume size: 0.5 – 10ul; 8 channel |
| Topette8-50 | Volume size: 5 – 50ul; 8 channel |
| Topette8-300 | Volume size: 30 – 300ul; 8 channel |
| 8-channel Adjustable Volume Pipettes | ||||||
| Volume Range | Increment | Test Volume（μl） | Accuracy error | Precision error | ||
| % | μl | % | μl | |||
| 0.5-10μl | 0.1μl | 10 | 1.50% | 0.15 | 1.50% | 0.15 |
| 5 | 2.50% | 0.125 | 2.50% | 0.125 | ||
| 1 | 4.00% | 0.04 | 4.00% | 0.04 | ||
| 5-50μl | 0.5μl | 50 | 1.00% | 0.5 | 0.50% | 0.25 |
| 25 | 1.50% | 0.375 | 1.00% | 0.25 | ||
| 5 | 3.00% | 0.15 | 2.00% | 0.1 | ||
| 50-300μl | 5μl | 300 | 0.70% | 2.1 | 0.25% | 0.75 |
| 150 | 1.00% | 1.5 | 0.50% | 0.75 | ||
| 50 | 1.50% | 0.75 | 0.80% | 0.4 | ||
Description
| Mechanical Pipette – Multi-Channel | |
| Topette8-10 | Volume size: 0.5 – 10ul; 8 channel |
| Topette8-50 | Volume size: 5 – 50ul; 8 channel |
| Topette8-300 | Volume size: 30 – 300ul; 8 channel |
| 8-channel Adjustable Volume Pipettes | ||||||
| Volume Range | Increment | Test Volume（μl） | Accuracy error | Precision error | ||
| % | μl | % | μl | |||
| 0.5-10μl | 0.1μl | 10 | 1.50% | 0.15 | 1.50% | 0.15 |
| 5 | 2.50% | 0.125 | 2.50% | 0.125 | ||
| 1 | 4.00% | 0.04 | 4.00% | 0.04 | ||
| 5-50μl | 0.5μl | 50 | 1.00% | 0.5 | 0.50% | 0.25 |
| 25 | 1.50% | 0.375 | 1.00% | 0.25 | ||
| 5 | 3.00% | 0.15 | 2.00% | 0.1 | ||
| 50-300μl | 5μl | 300 | 0.70% | 2.1 | 0.25% | 0.75 |
| 150 | 1.00% | 1.5 | 0.50% | 0.75 | ||
| 50 | 1.50% | 0.75 | 0.80% | 0.4 | ||
