Description
Incubator Shaker Accessories
| Part Number | Specifications | Note | Flask Clamp |
| IS-A1 | 50ml |
Made of polished stainless steel sheet. They can be fixed on any platform of all models of incubator shakers. |
 |
| IS-A2 | 100ml | ||
| IS-A3 | 150ml | ||
| IS-A4 | 200ml | ||
| IS-A5 | 250ml | ||
| IS-A6 | 500ml | ||
| IS-A7 | 1000ml | ||
| IS-A8 | 2000ml | ||
| IS-A9 | 3000ml | ||
| IS-A10 | 5000ml | ||
| IS-A50 | 25ml |
| Part number | Specifications | Note | Test Tube Rack |
| IS-A11 | 40 Hole φ14mm For 5ml Tube | Made of stainless steel and high grade ABS plastic material.
Compatible with all of IncuShakers®. Outside Dimensions (W x D x H): 262x112x140mm |
 |
| IS-A12 | 40 Hole φ16mm For 10ml Tube | ||
| IS-A23
|
40 Hole φ18mm For 15ml Tube | ||
| IS-A24 | 27 Hole φ22mm For 20ml Tube | ||
| IS- A42 | 21 Hole φ30mm For 50ml Tube |

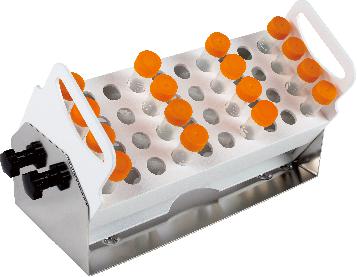

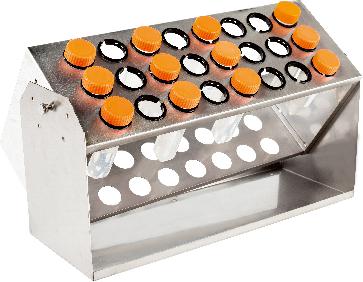

| Part Number | Specifications | Note | Adjusttable Test Tube Rack |
| IS-A20 | 40 Hole φ14mm For 5ml Tube |
Made of stainless steel and high grade ABS plastic material. Compatible with all of IncuShakers®. Outside Dimensions (W x D x H): 267x125x172mm |
|
| IS-A21 | 40 Hole φ16mm For 10ml Tube | ||
| IS-A30 | 40Hole φ18mm For 15ml Tube | ||
| IS-A31 | 27 Hole φ22mm For 20ml Tube | ||
| IS-A32 | 21Hole φ30mm For 50ml Tube |

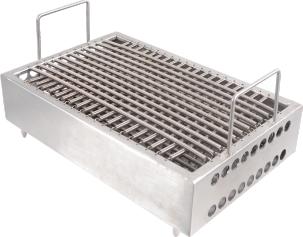

| Part Number | Specifications | Note | Adjusttable Test Tube Rack |
| IS-A37 | 24 Hole φ30mm For 50ml Tube | Made of stainless steel, rack for 300mm long tubes.
Outside Dimensions (W x D x H): 423x150x200mm |
 |
Incubator Shaker Accessories

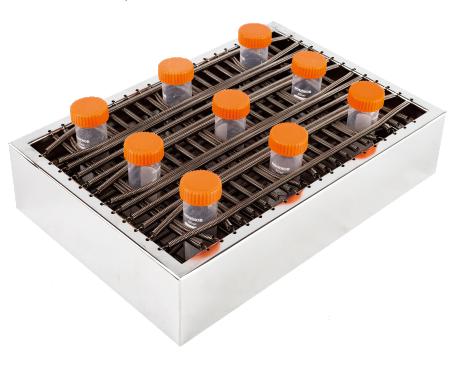

| Part Number | Specifications | Note | Multifunction Spring Platform |
| IS-A19 | WxDxH: 165x165x80mm |
For all shakers. |
 |
| IS-A27 | WxDxH: 350x240x80mm | ||
| IS-A22 | WxDxH: 450x400x80mm | For Bench-Top incubator shakers. | |
| IS-A14 | WxDxH: 428x295x80mm | For Upright incubator shakers. | |
| IS-A39 | WxDxH: 720x440x80mm | For IS-RDS3. | |
| IS-A48 | WxDxH: 840x440x80mm | For chest-type incubator shakers. | |
| IS-A63 | WxDxH: 899x539x81.5mm | For IS-RDS6 series. |

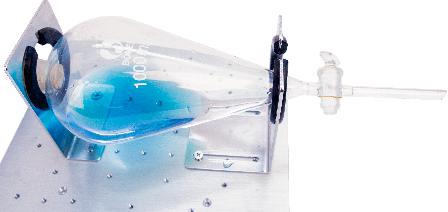

| Part Number | Specifications | Note | Fixture for Separating Funnel |
| IS-A25 | WxDxH: 355x402x153mm | Used for separating funnel with volume 5000ml. |  |
| Part Number | Specifications | Note | Fixture for Separating Funnel |
| IS-A35 | Used for separating funnel with volume greater than 500ml. |  |
| Part Number | Specifications | Note | Infusion Bottle Clamp |
| IS-A33 | 500ml | Made of stainless steel. Can be fixed on all platforms of incubator shakers. |  |
| Part Number | Specifications | Note |
Infusion Bottle Clamp |
| IS-A34 | 1000ml | Made of stainless steel. Can be fixed on all platforms of incubator shakers. |  |
Incubator Shaker Accessories
| Part Number | Specifications | Note | Picture |
| IS-A47 | WxD:
140x140mm |
Use for all shaker, wipe with water, dry for few minutes, the mat will be self-adhesive on surface. |
Self-Adhesive Silica Mat |
|

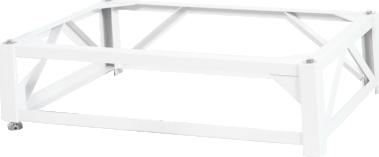

IS-A29 |
WxDxH: 948x630x225
mm |
Support stackable incubator shakers (up to two units). For IS-RDS3, IS-RDS3C,
IS-RDS4. |
Rack for Stacking Incubator Shakers |
| IS-A62 | WxDxH: 1440x775x330
mm |
Support stackable incubator shakers (up to two units). For IS-RDS6, IS-RDS6C,
series. |
|

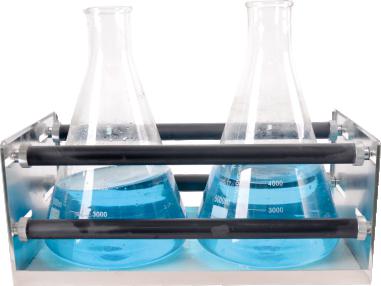

| IS-A26 | 5000ml | For 5000ml Bottle ( For IS-RDS3、IS-RDS3C、 IS-RDH2、IS-RSH2)
Hold 5000ml Flask. (For IS-RDS3、IS-RDS3C、 IS-RDH2、IS-RSH2) |
 Flask Holder |

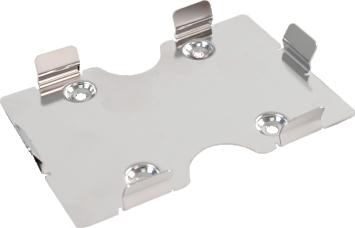

| IS-A13 | WxD:136x95mm | Can be fixed on any platform of incubator shakers. |  96-Well Microplate Holder |
| SY-2230-03A | WxDxH: 370x240x180mm | Maximum Capacity:1 |

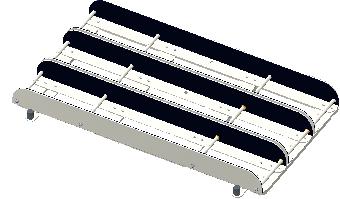

Universal Spring Platform |
| IS-A61 | WxDxH: 780×450×84mm | IS-A61 |
Deep Well Plate Clamp |
Incubator Shaker Accessories
| Part Number | Specifications | Note | |

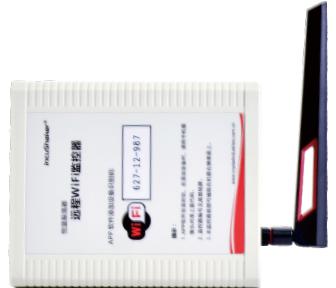

| IS-A64 | Please see Page 16. | Include basic monitor & control unit and APP software |
Remote Monitoring for Incubator shaker(With APP software) |
| IS-A65 | Include monitor & control unit and software for Apple iPhone and iPad | ||
| IS-A66 | Include advanced version monitor & control unit for Apple iPhone and iPad | ||
| IS-A71 | 1L/min, AC220V | Refit the Liquid Automatically. |
Passive Humidifier AutomaticWater Replenishing Device |

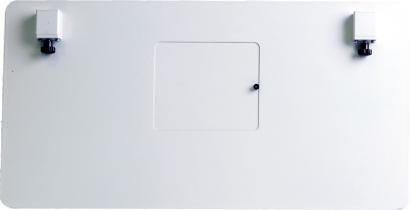

| IS-A80 | WxD:702x352mm | For IS-RDS6 Series. |  Window Shade |
| IS-A81 | WxD:652x232mm | For IS-RDS9, IS- RDS4X Series. |

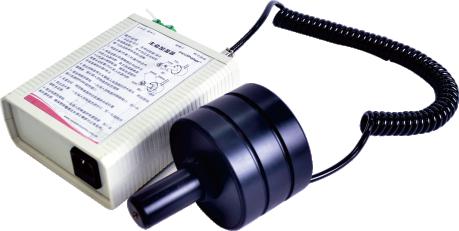

| Part Number | IS-A72 |  |
| RH Type | RH Controller | |
| Max. Humidity | 95% (37℃) | |
| RH Control Range | Up 10% of the Ambient to 95% | |
| RH Set Accuracy | ±1% | |
| RH Control Accuracy | ±5% | |
| RH Uniformity | ±2% | |
| Water Refill | Automatic | |
| Principle of Sensor | Capacitive | |
| Power Supply | AC 220V±22V, 50/60Hz |
