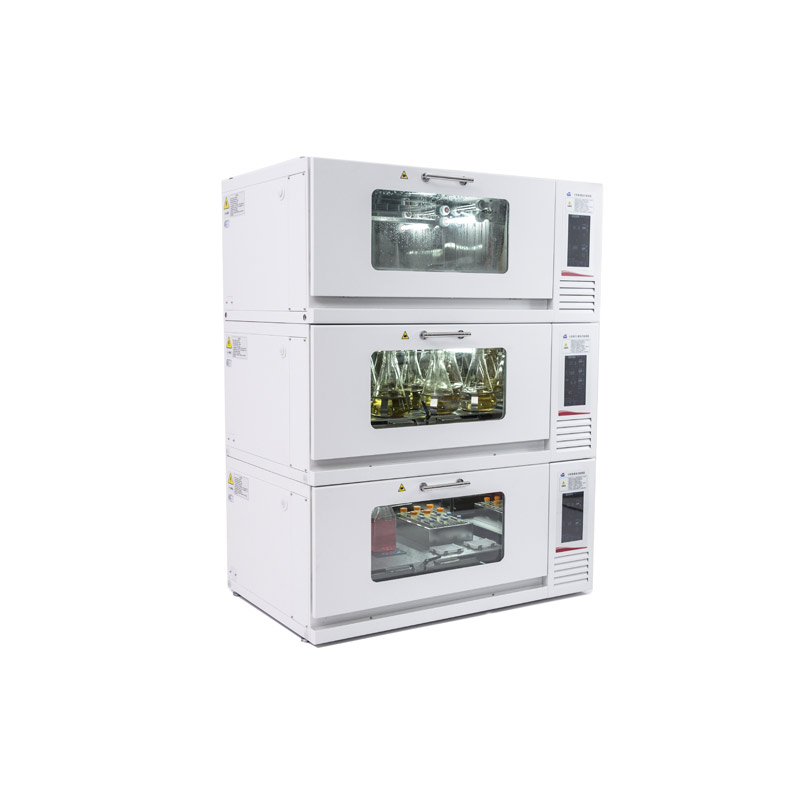

190L Stackable Incubator Shakers with Magnetic Drive - IS-AM Series

Incubator Shakers with Magnetic Drive.

Magnetic Drive motor: more reliable, low maintenance.

Stackable up to 3 levels.

Triple Eccentric Drive.

10” Large LCD color display control panel.

Specifications

 Model IS-AM IS-ACM IS-A5CM


Product Name

Stackable Incubator Shaker with Magnetic Drive (190L, Touch Screen) Stackable Incubator Shaker with Magnetic Drive and CO2

Controller (190L, Touch Screen)

Stackable Incubator Shaker with Magnetic Drive and CO2 Controller and Diameter 50mm (190L, Touch Screen)
Platform Dimensions 550x470mm


Max. Capacity

Clamp Capacity: 50mlx72 / 100mlx30 / 150mlx30 / 200mlx30 / 250mlx30 / 500mlx17 / 1000mlx12 / 2000mlx8 / 5000ml (Thomson)x4

Sticky Mat: 50mlx72 / 100mlx53 / 150mlx41 / 200mlx32 / 250mlx30 / 500mlx20 / 1000mlx12 / 2000mlx8 / 5000ml (Thomson)x4

Capacity 190L
Max. Load 10kg
Temp. Range Room  Temp. Minus 18℃~60℃ ( Lowest Temp. is 4℃ )
Temp. Accuracy ±0.1℃
Temp. Uniformity ±0.5℃ (@37℃)
Speed 0 (Stop), 30~300rpm
Speed Accuracy ±1rpm
Magnetic Driver Yes
Orbit Diameter φ26mm φ50mm
CO2 Sensor NA IR
CO2  Control Range NA 0~20%
CO2  Control Accuracy NA ±0.1%
Recover Time after Open Door 30s on Temp. NA ≤6min (@37℃)
Recover Time after Open Door 30s on Co2 NA ≤6min (@5%)
RH Type NA Evapor Naturally
Max. Humidity NA 95%
Programing Numbers 12 Sections
Illumination Both of Side Lamps
Disinfection Both of Side UV Lamps
Door Open Direction Leftward
Protect Set Parameters Passwords Protect



Model IS-AM IS-ACM IS-A5CM
Date Curve Display Temp. Curve, Speed  Curve Temp. Curve, Speed  Curve, CO2    Curve,RH  Curve
Display 7” Color Capacitance Touch Screen
Timer 0~999h59min
USB Drive Download Date Yes
Display the Date In 7 days
Date Store Types More than 912 days
Date Store Time 1min


Date Store Types

Time,Temp,Speed, Machine Status

Time,Temp,Speed,RH,Machine  Status

Automatical Defrost Yes
Auto-close Screen Yes
Auto-lock Yes
Third Platform High 1315mm
Platform with Rails Yes
Noise Level ≤55dB (In Refrigerating)
Water Sparge Resistant Yes
Driver Magnetic Driver
Interface Languages Chinese  or  English
Auto-run after Power Recovery

Yes

Heat Power ≤600W
Cool Power 70~180W
Power ≤730W ≤780W
Power Supply AC 220V±22V,50Hz / 60Hz
RH Control (Option) NA 10%~95% Above RH (Option)
Mobile Monitor and Control by WiFi (Option)

Option

PC Monitor and Control by RS485 (Option)

Option

Net Weight 170kg 170kg
Internal Dimensions 654x605x303mm
Outside Dimensions 970x780x(530 80 feet high)mm
