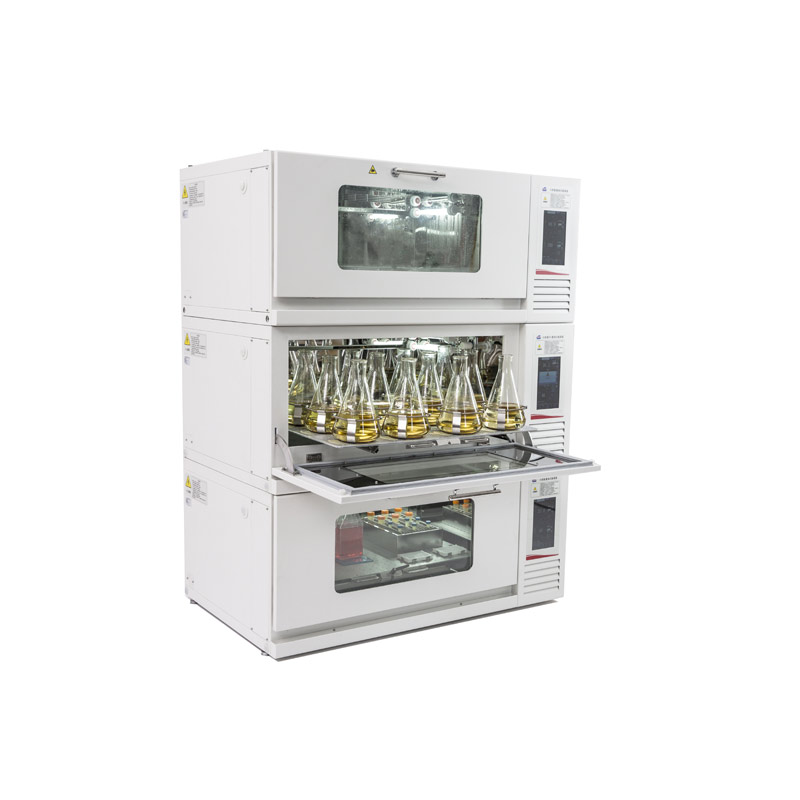

335L Stackable Low-Profile Incubator Shakers

IS-9 Series Incubator Shakers.

Lower in height to save lab space.

Stackable up to 3 levels.

Triple Eccentric Drive.

10” Large LCD color display control panel.

Specifications

 Model IS-9 IS-9T IS-9C IS-9C5 IS-9C5T




Product Name



Stackable Incubator Shaker (335L, Touch Screen)



Stackable Incubator Shaker (335L, Upward Door, Touch Screen)



Stackable Incubator Shaker with CO2 Controller (335L, Touch Screen)

Stackable Incubator Shaker with CO2 Controller and Shake Diameter 50mm (335L, Touch Screen) Stackable Incubator Shaker with CO2 Controller and Shake Diameter 50mm (335L, Upward Door, Touch Screen)
Platform Dimensions 900x550mm




Max. Capacity

Clamp Capacity: 50mlx135 / 100mlx60 / 150mlx60 / 200mlx60 / 250mlx60 / 500mlx29 / 1000mlx22 / 2000mlx15 / 5000ml (Thomson)x6

Sticky Mat: 50mlx187 / 100mlx112 / 150mlx104 / 200mlx84 / 250mlx76 / 500mlx40 / 1000mlx28 / 2000mlx15 / 5000ml (Thomson)x8

Capacity 335L
Max. Load 20kg
Temp. Range Room  Temp. Minus 18℃~60℃ ( Lowest Temp. is 4℃ )
Temp. Accuracy ±0.1℃
Temp. Uniformity ±0.5℃ (@37℃)
Speed 0 (Stop), 30~300rpm
Speed Accuracy ±1rpm
Orbit Diameter φ26mm φ50mm
CO2 Sensor NA IR
CO2  Control Range NA 0~20%
CO2  Control Accuracy NA ±0.1%
Recover Time after Open Door 30s on Temp. NA ≤6min (@37℃)
Recover Time after Open Door 30s on Co2 NA ≤6min (@5%)
RH Type NA Evapor Naturally
Max. Humidity NA 95%
Programing Numbers 12 Sections
Illumination Both of Side Lamps
Disinfection Both of Side UV Lamps
Door Open Direction Downward Upward Downward Downward Upward
Protect Set Parameters Passwords Protect



Model IS-9 IS-9T IS-9C IS-9C5 IS-9C5T
Date Curve Display Temp. Curve, Speed  Curve Temp. Curve, Speed  Curve, CO2    Curve,RH  Curve
Display 10” Color Capacitance Touch Screen
Timer 0~999h59min
USB Drive Download Date Yes
Display the Date In 7 days
Date Store Years More than 912 days
Date Store Time 1min
Date Store Types Time,Temp,Speed,Machine Status Time,Temp,Speed,RH,Machine  Status
Automatical Defrost Yes
Auto-close Screen Yes
Auto-lock Yes
Third Platform High 1323mm
Platform with Rails Yes
Noise Level ≤53dB (In Refrigerating)
Water Sparge Resistant Yes
Interface Languages Chinese  or  English
Auto-run after Power Recovery

Yes

Heat Power ≤850W
Cool Power 70~180W
Power ≤950W ≤1000W
Power Supply AC 220V±22V,50Hz / 60Hz
RH Control (Option) NA 10%~95% Above RH (Option)
Mobile Monitor and Control by WiFi (Option)

Option

PC Monitor and Control by RS485 (Option)

Option

Net Weight 290kg 295kg
Internal Dimensions 1005x690x295mm


Outside Dimensions

1380x875x(525 80

feet high )mm

1380x875x(570 80

feet high)mm



1380x875x(525 80 feet high)mm

1380x875x(575 80

feet high)mm
